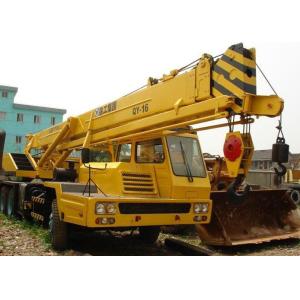

Environmental Friendly QY16C Hydraulic Mobile Crane, Original Truck Crane Spare Parts For Sale
Technical Parameters
| Classificatory | Item | Unit | Parameter |
| Engine | Model | | D6114 |
| Outline dimension | Overall length | mm | 11990 |
| Overall width | mm | 2500 |
| Overall height | mm | 3350 |
| Wheel base | Axle 1, Axle 2 | mm | 4025 |
| Axle 2, Axle 3 | mm | 1350 |
| Mass | Total mass in travel state | kg | 22900 |
| Axle load | Axle 1 | kg | 5240 |
| Axle 2 | kg | 17660 |
| Travel performance | Travel speed | Max. travel speed | km/h | 70 |
| Min. stable travel speed | km/h | 4 |
| Turning diameter | Min. turning diameter | m | 20 |
| Min. turning diameter at boom tip | m | 23 |
| Min. ground clearance | mm | 270 |
| Approach angle | (°) | 21 |
| Departure angle | (°) | 10 |
| Braking distance (at 30km/h with full load) | m | 9.5 |
| Max. grade-ability | ％ | 24 |
| Fuel consumption for 100km | L | 35 |
| Power | Engine rated output | kW/(r/min) | 158/2200 |
| Engine rated torque | N.m/ (r/min) | 790/1400 |
| Engine rated speed | r/min | 2200 |
Main Technical Data for Lifting Operation
| Classificatory | Item | Unit | Parameter |
| Lifting performance | Max. total rated lifting capacity | t | 16 |
| Min. rated working radius | m | 3 |
| Turning radius at turntable tail | m | ≤3.12 |
| Max. load moment | Base boom | kN.m | 711 |
| Fully extended boom | kN.m | 449 |
| Fully extended boom + Jib | kN.m | 186 |
| Outrigger span | Longitudinal | m | 4.6 |
| Lateral | m | 5.4 |
| Lifting height | Base boom | m | ≥9.9 |
| Fully extended boom | m | ≥23.6 |
| Fully extended boom + Jib | m | ≥30.8 |
| Working speed | Boom raising time | s | ≤60 |
| Boom full extension time | s | ≤75 |
| Max. swing speed | r/min | ≥2.5 |
| Hoist speed (single line) | Main winch | Full load | m/min | ≥54 |
| No load | m/min | ≥100 |
| Aux. winch | Full load | m/min | ≥54 |
| No load | m/min | ≥100 |
| Noise limit | Crane exterior noise | dB (A) | ≤118 |
| At seated position | dB (A) | ≤90 |
The specification is subject to change wihout notice.
Spare Parts:

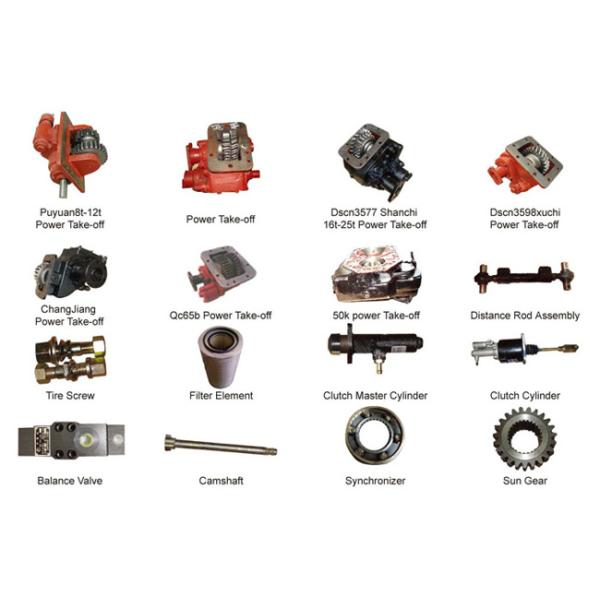

We can supply with all of original spare parts for XCMG truck crane QY16K, QY25K, QY25K5-I, QY70K-I etc., such as diesel pump, oil pump, starting motor, brake valve, steering switch, brake shoe, balance valve, control rod, oil filter, air filter, transmission, pin shaft, pin shaft etc.
